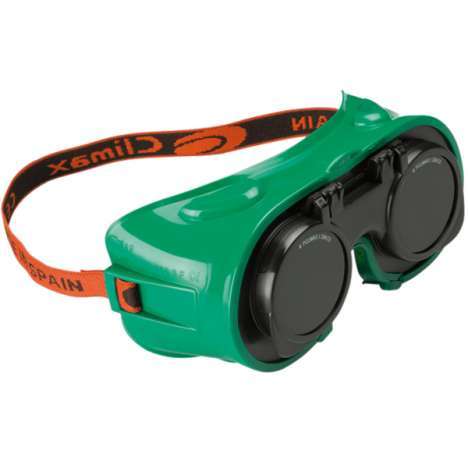

Welding Goggles 545-A

Description:

Climax 545-A goggle have been designed and manufactured to block the radiation emitted during oxyacetylene welding and oxygen cutting processes.

Characteristics:

• Frame and fastening system: The frame is made up of a front and a fastening system. The front is green and made by injecting PVC resin. It has a slot all the way around the inner perimeter, which the collapsible frame slots into.
• The collapsible frame is black and made by polyamide injection and consists of two parts , one part is fixed to the front and contains the colorless eyepieces and another collapsible part that shelter the two filtering eyepieces.
• Lenses: The goggle have 4 lenses, 2 of which are colorless. They are circular, 50 mm in diameter and 3mm thick. The two
  filtering eyepieces are made of non-actinic glass and are 50 mm in diameter and 2,6mm thick.
• They are situated in the collapsible part of the frame so they can be raised once the welding work is over, enabling perfect vision through the colorless eyepieces.
• Wide range of shades: 4-6
• Optical class: 1
• Weight: 0,190 kg.

Test / CE Certification:

Norms: EN 166:2001
EN 175:1997
Regulation (EU) 2016/425
